Vauxhall Astra – Datasheet
Source: https://data-ipl-live.opelhub.com/lang/uk-en/featureDataAstra.json. All texts and values have been reproduced unchanged from the source.
Trim levels
- Griffin
- GS
- Ultimate
Powertrains & Prices
| Engine | Griffin | GS | Ultimate |
|---|---|---|---|
| Petrol 130 PS (96 kW) Automatic | £27,495 | £28,995 | £31,495 |
| Hybrid 145 PS (107 kW) Automatic | £29,995 | £31,495 | £33,995 |
| Plug-In Hybrid 195 PS (144kW) Automatic | £29,995 | £31,495 | £33,995 |
| Electric 156 PS (115kW) Automatic | £28,495 | £29,995 | £32,495 |
Additional information per engine
- Petrol:
- Hybrid:
- Plug-In:
- Electric:
Technical details
Petrol Engine
- Cylinders: 3
- kW: 96 (130 PS)
- Gearbox: 8 speed automatic
- WLTP combined consumption (l/100km)*: 6.0
- WLTP mixed C02 emissions (g/km)*: 135
- Emission compliance : Euro 6.4
- Max speed (mph): 130
- Max torque (Nm): 230
- Fuel tank volume (l): 52
Hybrid Motor
- Cylinders: 3
- kW: 107 (145 PS)
- Gearbox: 6-speed e-DCT6
- WLTP combined consumption (l/100km)*: 4,9-5,1
- WLTP mixed C02 emissions (g/km)*: 109-115
- Emission compliance : Euro 6e-bis
- Max speed (mph): 130
- Max torque (Nm): 230
- Fuel tank volume (l): 52
- WLTP mixed C02 emissions (g/km) *: 109-115
Plug-in Hybrid Motor
- Cylinders: 4
- kW : 144 (195 PS)
- Gearbox: 7-speed automatic
- WLTP combined consumtion (l/100km)*: 2,4-2,2
- WLTP combined consumtion (kWh/100km)*: 13,1 - 12,7
- WLTP combined fuel consumtion with discharged batterie (l/100km)*: 5,5-5,4
- WLTP mixed C02 emissions (g/km)*: 54-50
- Emission compliance : Euro 6e-bis
- Max speed (mph): 140
- Max torque (Nm): 360
- Fuel tank volume (l): 42
- WLTP mixed C02 emissions (g/km) *: 54-50
- kW: 144 (196 PS)
- WLTP mixed CO2 emissions (g/km)*: 54-50
Electric Motor
- WLTP combined consumption (kWh/100km)*: 15,4-15,8
- WLTP mixed C02 emissions (g/km) *: 0
- DC for fast charging (kW): max. 100 kW, 20-80% - 32 minutes
- AC charging (kW): max. 11 kW
- Max speed (mph): 105
- Max torque (Nm): 270

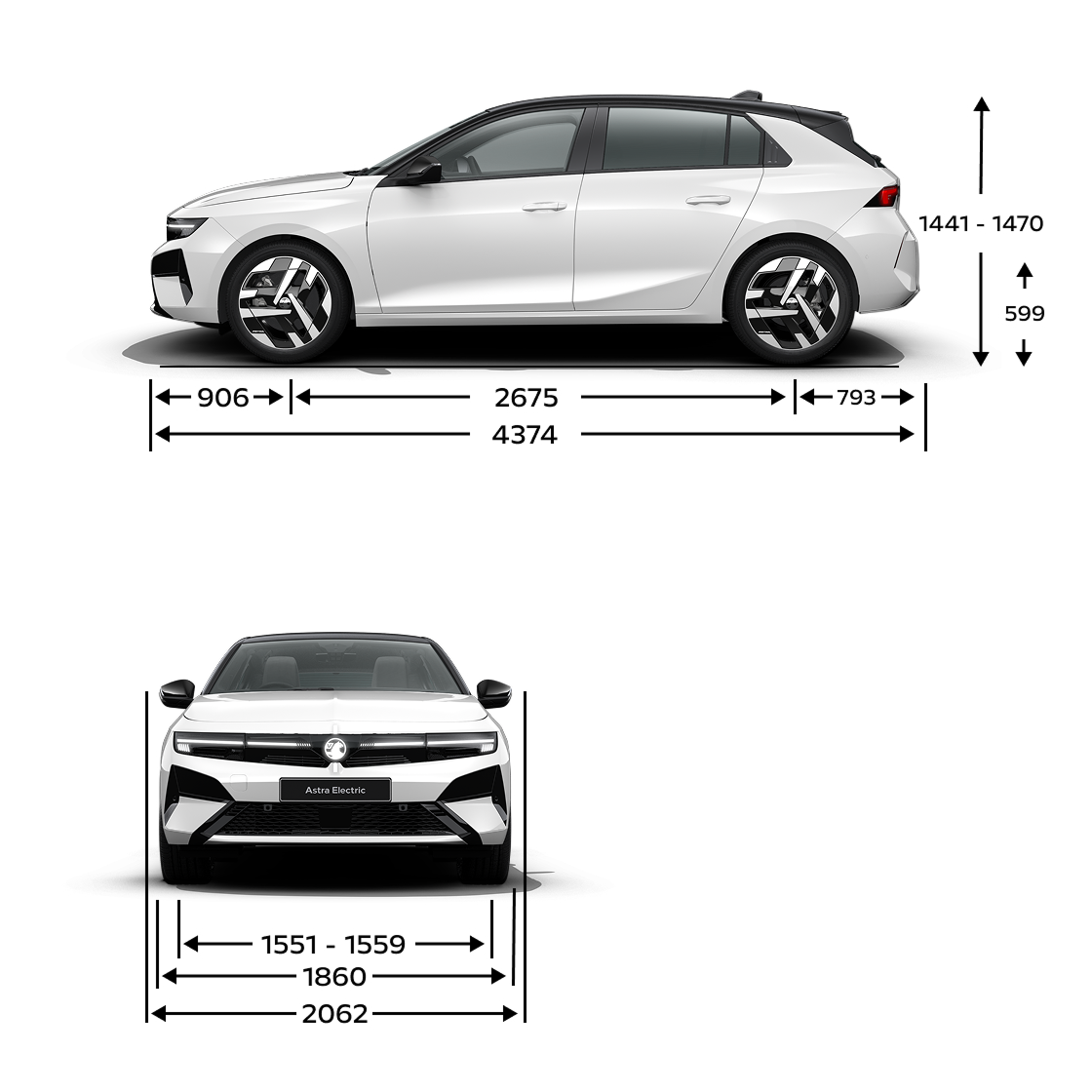

Technical Data
- Height (mm): 1441-1488
- Width (mm): 2062 (Non-folded mirrors)
- Length (mm): 4374
- Wheelbase (mm): 2675
Weights / towing weight (kg)
| Petrol | Hybrid | Plug-In Hybrid | Electric | |
|---|---|---|---|---|
| Vehicle weight incl. Driver | 1371 | 1454 | 1678 | 1736 |
| Gross vehicle weight | 1880 | 1950 | 2150 | 2100 |
| Maximum braked towing capacity | 1200 | 1150 | 1450 | 0 |
All details: Griffin trim level
Key features
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- LED indicators (front and rear)
- Dusk and rain sensor
- Manual headlamp levelling
- 10" Picture Frame Cockpit, with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
Powertrains & Prices
Petrol 130 PS (96 kW) Automatic – £27,495
Hybrid 145 PS (107 kW) Automatic – £29,995
Plug-In Hybrid 195 PS (144kW) Automatic – £29,995
Electric 156 PS (115kW) Automatic – £28,495¹
Design
- Carbon Black (Metallic) – +£0
- Athletic Blue (Metallic) – +£650
- Contour White (Metallic) – +£650
- Electric Yellow (Metallic) – +£650
- Crystal Silver (Metallic) – +£650
- Graphic Grey (Metallic) – +£650
Black roof
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard.

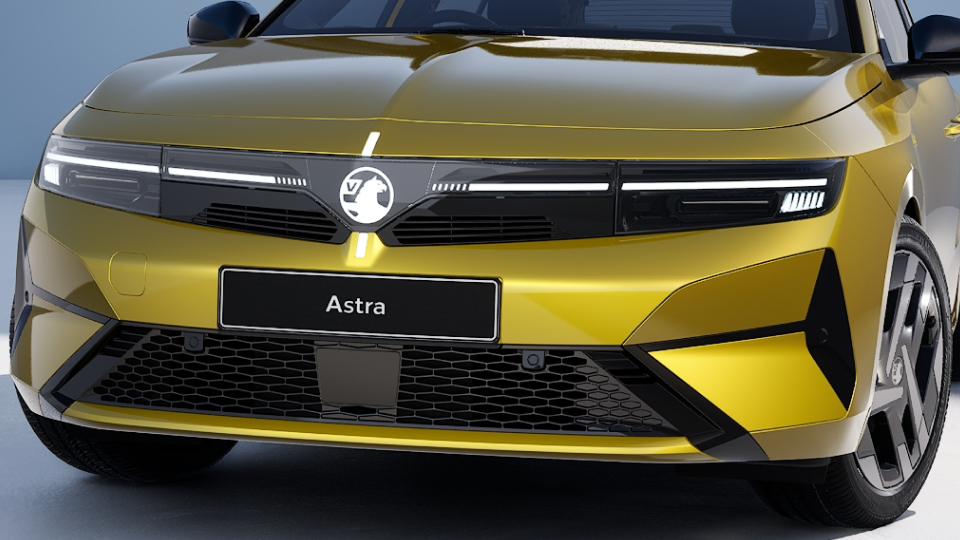

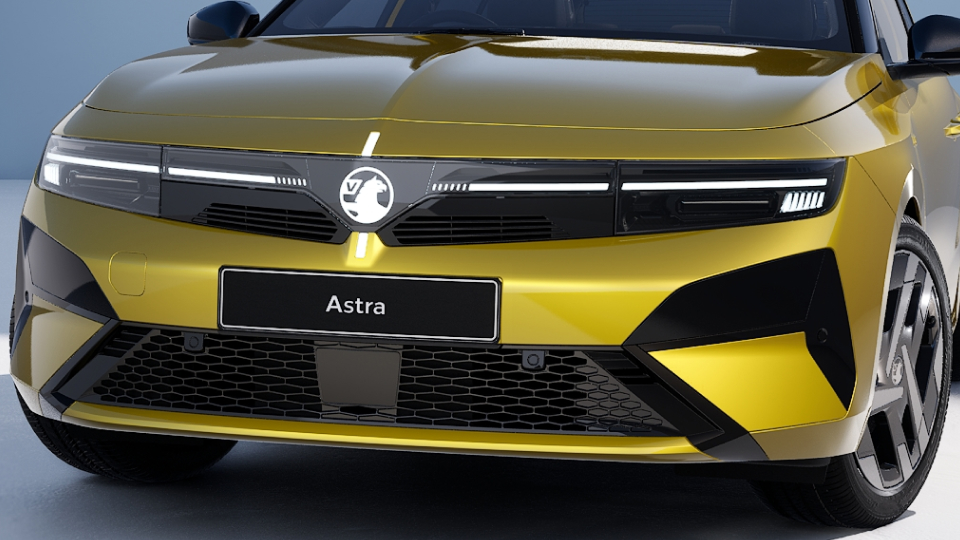

Illuminated Vauxhall Vizor
- Black grille with Illuminted Vauxhall Vizor
- Front bumper grille with “Illuminated Vauxhall Vizor”
- Rear bumper with grained panel
Tinted privacy rear windows + tailgate (70%)
Wing Mirrors (manual fold)
- Mirrors come with electric defrost function - perfect for cold starts
- LED turn indicator
- Manually folding wing mirrors
- Mirrors come with electric defrost function - perfect for cold starts
- LED turn indicator
- Manually folding wing mirrors
17" Diamond Cut Alloy Wheels
- Standard for Petrol and Plug-in Hybrid vehicles
18" Rekord, Diamond Cut, Alloy Wheels
- Standard for electric vehicles
Comfort & Infotainment
Single zone, automatic electronic climate control
Ergonomic Comfort seats with driver-side AGR
- Modene seat fabric with grey insets
- 10-way manually adjustable AGR driver seat
- 6-way manually adjustable front passenger seat
- 4-way power adjustable lumbar support (driver)
- 2-way adjustable headrest (driver and front passenger)
- Heated driver and front passenger seats

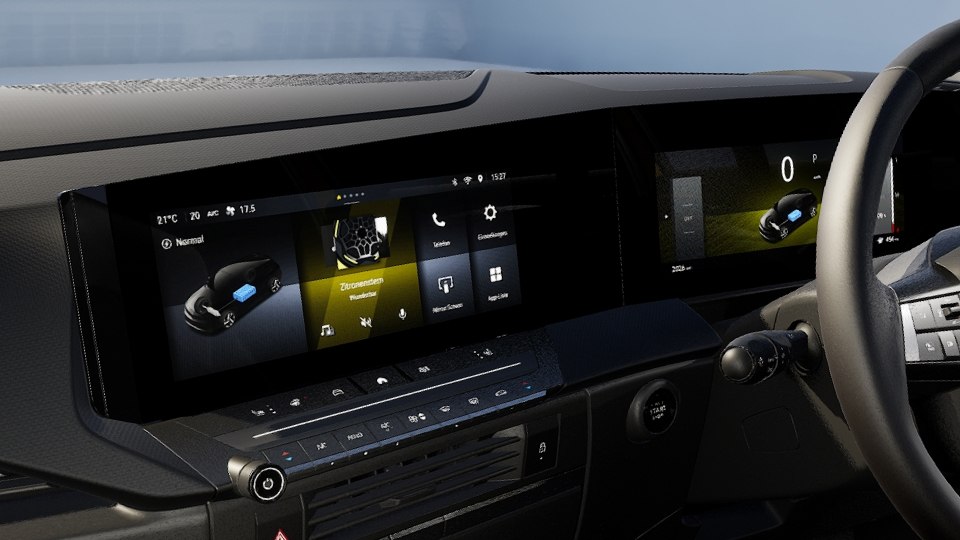

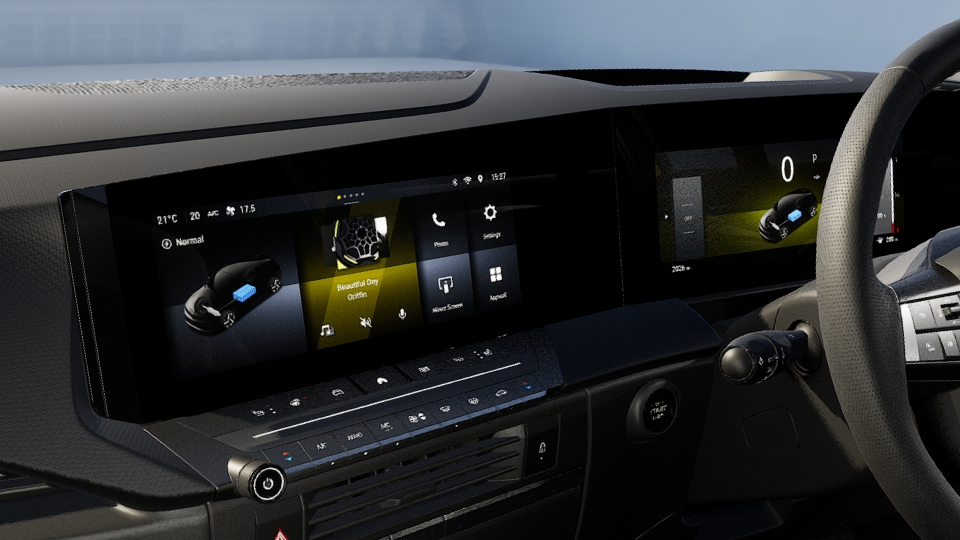

Multimedia Pure Panel with navigation system
- 10" Picture Frame Cockpit, with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
- 10" Picture Frame Cockpit, with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
- 10" Picture Frame Cockpit, with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
Modern Lisa flat bottomed leather effect steering wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- With heating function
Inside rear view mirror
Storage
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flat floor in the boot's lower position & storage compartmnet under the boot floor with strap (static floor & no storage nets in the soft trim of the boot)
- Foldable bench backrest 40/60
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flat floor in the boot's lower position & storage compartmnet under the boot floor with strap (static floor & no storage nets in the soft trim of the boot)
- Foldable bench backrest 40/60
Keyless start
Options
Spare wheel provision – £20 (inc. VAT) (Code: DRS19)
- Spare wheel is Retailer-fit
- Removes emergency tyre repair kit
- Petrol Hybrid versions only
Safety & Security & Driving Aids

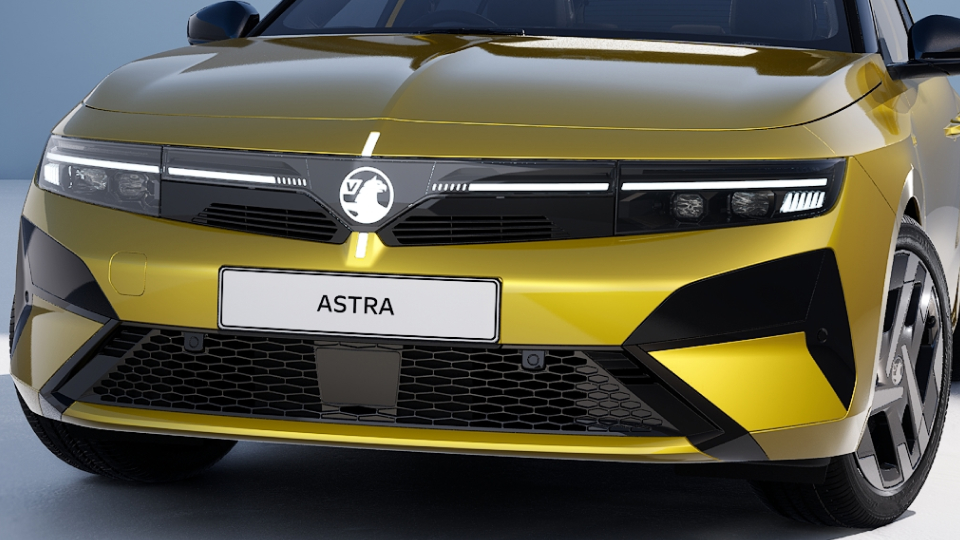

Intelli-LED Headlights with high beam assist and automatic lighting control
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- Dusk and rain sensor
- Manual headlamp levelling
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- Dusk and rain sensor
- Manual headlamp levelling
Passengers safety
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
Front & rear parking distance sensors
- Front and rear parking distance sensors
- 8 front and rear parking sensors
Driver assistance systems
- LKA Road Edge, Lane keep assist (On Coming)
- Autonomous emergency braking system 3
- Speed limits information, Extended traffic sign recognition + auxiliary sign
- Driver attention alert
- Adaptative cruise control with vehicle stop and start
- Intelligence speed adaptation
- Speed limiter
- Lane keeping assist
- Autonomous emergency braking system
- Extended traffic sign recognition
- Speed limiter
- Driver attention warning
- Adaptive cruise control with vehicle stop/start
- Intelligent speed adaption
Electric car equipment
Electric car equipment - 11kW On-board Charger (Code: DLZ06)
- 11kW On-Board Charger
- 100kW DC charging
- Type 3 charging cable (AC)
Heat pump (Code: D2501)
- Compared to a traditional heater, a heat pump is around three times more efficient. Electric car range drops in cold conditions, but range tests show that mileage drops around 10% less in the cold on cars fitted with a heat pump compared to those running a fan heater.
Petrol Engine
Petrol 130 PS (96 kW) Automatic
| Cylinders | 3 |
| kW | 96 (130 PS) |
| Gearbox | 8 speed automatic |
| WLTP combined consumption (l/100km)* | 6.0 |
| WLTP mixed C02 emissions (g/km)* | 135 |
| Emission compliance | Euro 6.4 |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Hybrid Motor
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | 6-speed e-DCT6 |
| WLTP combined consumption (l/100km)* | 4,9-5,1 |
| WLTP mixed C02 emissions (g/km)* | 109-115 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Plug-in Hybrid Motor
Plug-In Hybrid 195 PS (144kW) Automatic
| Cylinders | 4 |
| kW | 144 (195 PS) |
| Gearbox | 7-speed automatic |
| WLTP combined consumtion (l/100km)* | 2,4-2,2 |
| WLTP combined consumtion (kWh/100km)* | 13,1 - 12,7 |
| WLTP combined fuel consumtion with discharged batterie (l/100km)* | 5,5-5,4 |
| WLTP mixed C02 emissions (g/km)* | 54-50 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 140 |
| Max torque (Nm) | 360 |
| Fuel tank volume (l) | 42 |
Electric Motor
Electric 156 PS (115kW) Automatic
| WLTP combined consumption (kWh/100km)* | 15,4-15,8 |
| WLTP mixed C02 emissions (g/km) * | 0 |
| DC for fast charging (kW) | max. 100 kW, 20-80% - 32 minutes |
| AC charging (kW) | max. 11 kW |
| Max speed (mph) | 105 |
| Max torque (Nm) | 270 |
Technical Data
| Height (mm) | 1441-1488 |
| Width (mm) | 2062, (Non-folded mirrors) |
| Length (mm) | 4374 |
| Wheelbase (mm) | 2675 |
| Vehicle weight incl. Driver (kg) | Petrol AT: 1371, Hybrid: 1454, Plug-In Hybrid: 1678, Electric: 1736 |
| Gross vehicle weight (kg) | Petrol AT: 1880, Hybrid: 1950, Plug-In Hybrid: 2150, Electric: 2100 |
| Maximum braked towing capacity (kg) | Petrol AT: 1200, Hybrid: 1150, Plug-in Hybrid: 1450, Electric: 0 |
All details: GS trim level
Key features
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- LED indicators (front and rear)
- Dusk and rain sensor
- Manual headlamp levelling
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- Wireless phone charging
- E-Call and A-Call
- 1 USB C
Powertrains & Prices
Petrol 130 PS (96 kW) Automatic – £28,995
Hybrid 145 PS (107 kW) Automatic – £31,495
Plug-In Hybrid 195 PS (144kW) Automatic – £31,495
Electric 156 PS (115kW) Automatic – £29,995¹
Design
- Carbon Black (Metallic) – +£0
- Athletic Blue (Metallic) – +£650
- Contour White (Metallic) – +£650
- Electric Yellow (Metallic) – +£650
- Crystal Silver (Metallic) – +£650
- Graphic Grey (Metallic) – +£650
Black roof
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
Illuminated Vauxhall Vizor
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
Tinted privacy rear windows + tailgate (70%)
Wing Mirrors (electric fold)
- Mirrors come with electric defrost function - perfect for cold starts in high glass black housing
- LED turn indicator
- Electric folding wing mirrors
- Welcome lighting
- Side Camera
- Mirrors come with electric defrost function - perfect for cold starts in high glass black housing
- LED turn indicator
- Electric folding wing mirrors
- Welcome lighting
- Side Camera
17" Diamond Cut Alloy Wheels
- Standard for Petrol and Plug-In Hybrid vehicles
18" Rekord, Diamond Cut, Alloy Wheels
- Standard for electric vehicles
Comfort & Infotainment
Dual zone, automatic, electronic climate control
Ergonomic Sport seats with driver-side AGR
- Greta vinyl seat trim with Bird fabric inserts
- 10-way manually adjustable AGR driver seat
- 6-way manually adjustable front passenger seat
- 4-way power adjustable lumbar support (driver)
- 4-way adjustable headrest (driver and front passenger)
- Heated driver and front passenger seats
Multimedia Pure Panel with navigation system
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- Wireless phone charging
- E-Call and A-Call
- 1 USB C
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- Wireless phone charging
- E-Call and A-Call
- 1 USB C
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
Modern Lisa flat bottomed leather effect steering wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- With heating function
Stylish, frameless electrochromic rear view mirror
Storage
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flat floor in the boot's lower position & storage compartmnet under the boot floor with strap (static floor & no storage nets in the soft trim of the boot)
- Foldable bench backrest 40/60
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flat floor in the boot's lower position & storage compartmnet under the boot floor with strap (static floor & no storage nets in the soft trim of the boot)
- Foldable bench backrest 40/60
Keyless entry and start
Ambient lighting
Options
Spare wheel provision – £20 (inc. VAT) (Code: DRS19)
- Spare wheel is Retailer-fit
- Removes emergency tyre repair kit
- Petrol Hybrid versions only
Safety & Security & Driving Aids
Intelli-LED Headlights with high beam assist and automatic lighting control
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- LED indicators (front and rear)
- Dusk and rain sensor
- Manual headlamp levelling
- Stunning front LED Daytime Running Lights and Indicators.
- LED Tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic High Beam Assist for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- Dusk and rain sensor
- Manual headlamp levelling
Passengers safety
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
180° rear parking camera with sensors
- 8 front and rear parking sensors
- 180° rear view camera
- 8 front and rear parking sensors
- 180° rear view camera
Driver assistance systems
- LKA Road Edge, Lane keep assist (On Coming)
- Autonomous emergency braking system 3
- Speed limits information, Extended traffic sign recognition + auxiliary sign
- Driver attention alert
- Adaptative cruise control with vehicle stop and start
- Intelligence speed adaptation
- Speed limiter
- Lane keep assist
- Autonomous emergency braking system
- Extended traffic sign recognition
- Speed limiter
- Driver attention warning
- Adaptive cruise control with vehicle stop/start
- Intelligent speed adaption
Electric car equipment
Electric car equipment - 11kW On-board Charger (Code: DLZ06)
- 11kW On-Board Charger
- 100kW DC charging
- Type 3 charging cable (AC)
Heat pump (Code: D2501)
- Compared to a traditional heater, a heat pump is around three times more efficient. Electric car range drops in cold conditions, but range tests show that mileage drops around 10% less in the cold on cars fitted with a heat pump compared to those running a fan heater.
Petrol Engine
Petrol 130 PS (96 kW) Automatic
| Cylinders | 3 |
| kW | 96 (130 PS) |
| Gearbox | 8 speed automatic transmission |
| WLTP combined consumption (l/100km)* | 5,9 |
| WLTP mixed C02 emissions (g/km)* | 133 |
| Emission compliance | Euro 6.4 |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Hybrid Motor
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | 6 speed automatic eDCT |
| WLTP combined consumption (l/100km)* | 4,9-5,1 |
| WLTP mixed C02 emissions (g/km) * | 109-115 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Plug-in Hybrid Motor
Plug-In Hybrid 195 PS (144kW) Automatic
| Cylinders | 4 |
| kW | 144 (196 PS) |
| Gearbox | 7 speed automatic |
| WLTP combined consumtion (l/100km)* | 2,4-2,2 |
| WLTP combined consumtion (kWh/100km)* | 13,1-12,7 |
| WLTP combined fuel consumtion with discharged batterie (l/100km)* | 5,5-5,4 |
| WLTP mixed C02 emissions (g/km) * | 54-50 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 140 |
| Max torque (Nm) | 360 |
| Fuel tank volume (l) | 42 |
Electric Motor
Electric 156 PS (115kW) Automatic
| WLTP combined consumption (kWh/100km)* | 15,4-15,8 |
| WLTP mixed C02 emissions (g/km) * | 0 |
| DC for fast charging (kW) | max. 100 kW, 20-80% - 32 minutes |
| AC charging (kW) | max. 11 kW |
| Max speed (mph) | 105 |
| Max torque (Nm) | 270 |
Technical Data
| Height (mm) | 1441-1488 |
| Width (mm) | 2062, (Non-folded mirrors) |
| Length (mm) | 4374 |
| Maximum braked towing capacity (kg) | Petrol AT: 1200, Hybrid: 1150, Plug-In Hybrid: 1450, Electric: 0 |
| Vehicle weight incl. Driver (kg) | Petrol AT: 1371, Hybrid: 1454, Plug-In Hybrid: 1678, Electric: 1736 |
| Gross vehicle weight (kg) | Petrol AT: 1880, Hybrid: 1950, Plug-In Hybrid: 2150, Electric: 2100 |
| Maximum braked towing capacity (kg) | Petrol AT: 1200, Hybrid: 1150, Plug-In Hybrid: 1450, Electric: 0 |
All details: Ultimate trim level
Key features
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- E-Call and A-Call
- 1 USB C
- Heated windscreen
- Extended head-up-display
Powertrains & Prices
Petrol 130 PS (96 kW) Automatic – £31,495
Hybrid 145 PS (107 kW) Automatic – £33,995
Plug-In Hybrid 195 PS (144kW) Automatic – £33,995
Electric 156 PS (115kW) Automatic – £32,495¹
Design
- Carbon Black (Metallic) – +£0
- Athletic Blue (Metallic) – +£650
- Contour White (Metallic) – +£650
- Electric Yellow (Metallic) – +£650
- Crystal Silver (Metallic) – +£650
- Graphic Grey (Metallic) – +£650
Black roof
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
- All models come with a dynamic-looking black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
Illuminated Vauxhall Vizor
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
- Front bumper grille with "Illuminated Vauxhall Vizor"
- Rear bumper with high gloss black inserts
Tinted privacy rear windows + tailgate (70%)
Wing Mirrors (electric fold)
- Mirrors come with electric defrost function - perfect for cold starts in high glass black housing
- LED turn indicator
- Electric folding wing mirrors
- Welcome lighting
- Side Camera
- Mirrors come with electric defrost function - perfect for cold starts in high glass black housing
- LED turn indicator
- Electric folding wing mirrors
- Welcome lighting
- Side Camera
18" Pentagon Black Alloy Wheels
- Standard for Hybrid and Plug-In Hybrid vehicles
18" Rekord, Diamond Cut, Alloy Wheels
- Standard for electric vehicles
Comfort & Infotainment
Dual zone, automatic electronic climate control
Ergonomic Sports seats with driver-side AGR
- ReNewknit seat fabric with vinyl inserts
- 10-way powered adjustable AGR seat with memory function (driver - co driver)
- 4-way power-adjustable headrest (driver & front passenger)
- 4-way power-adjustable lumbar support (driver & front passenger)
- Heated steering wheel
- Heated driver and front passenger seats with massage function
- ReNewknit seat fabric with vinyl inserts
- 10-way powered adjustable AGR seat with memory function (driver - co driver)
- 4-way power-adjustable headrest (driver & front passenger)
- 4-way power-adjustable lumbar support (driver & front passenger)
- Heated steering wheel
- Heated driver and front passenger seats with massage function
- ReNewknit seat fabric with vinyl inserts
- 10-way powered adjustable AGR seat with memory function (driver - co driver)
- 4-way power-adjustable headrest (driver & front passenger)
- 4-way power-adjustable lumbar support (driver & front passenger)
- Heated steering wheel
- Heated driver and front passenger seats with massage function
Multimedia Pure Panel with navigation system and Intelli-HUD (extended Head-Up Display)
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- E-Call and A-Call
- 1 USB C
- Heated windscreen
- Extended head-up-display
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™ connection
- 10'' Driver information cluster
- E-Call and A-Call
- 1 USB C
- Heated windscreen
- Extended head-up-display
- 10" Pure Panel Pro with wireless Apple CarPlay™/Android Auto™
- 10'' Driver information cluster
- Navigation System
- 6 speakers
- E-Call and A-Call
- 1 USB C
- Wireless phone charging
- Extended Head-Up Display (Intelli-HUD)
Modern Lisa flat bottomed perforated leather effect steering wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- Feels like leather to the touch, with the convenience of being able to adjust audio settings without taking your hands off the wheel
- With heating function
Stylish, frameless electrochromic rear view mirror
Storage
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flex load floor adjustable in 2 positions with plastic handle (not on BEV and PHEV)
- Foldable bench backrest 40/60
- Open cup holder with slider
- Glove box and LED lighting
- Eye glass storage compartment
- Rear suit hanging hooks
- Flex load floor adjustable in 2 positions with plastic handle (on Petrol version only)
- Foldable bench backrest 40/60
Keyless entry and start
Ambient lighting
Heated windscreen
Options
Spare wheel provision – £20 (inc. VAT) (Code: DRS19)
- Spare wheel is Retailer-fit
- Removes emergency tyre repair kit
- Petrol Hybrid versions only
Tilt & Slide Sunroof – £500 (inc. VAT) (Code: DTC07)
- Electrically operated side/tilt glass sunroof with blind
Safety & Security & Driving Aids
Intelli-Lux HD LED® headlights
- Stunning front LED daytime running lights and indicators.
- LED tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic high beam assist with camera for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- Dusk and rain sensor.
- Dynamic headlamp levelling.
- Cornering Lights.
- Stunning front LED daytime running lights and indicators.
- LED tail lights and indicator in the distinctive Vauxhall signature look.
- Automatic high beam assist with camera for safer and easier night-time driving thanks to the system which automatically switches the headlights setting to low beam from high beam when it detects a vehicle or pedestrians ahead.
- Dusk and rain sensor.
- Dynamic headlamp levelling.
- Cornering Lights.
- Adverse / foggy weather function
Passengers safety
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts wih pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Child safety locks
- Front passenger airbags
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Tyre pressure warning system with dashboard reset button
180° rear parking camera with sensors
- 8 front and rear parking sensors
- 180° rear view camera
- 8 front and rear parking sensors
- 180° rear view camera
Driver assistance systems
- LKA Road Edge, Lane keep assist (On Coming)
- Autonomous emergency braking system 3
- Speed limits information, Extended traffic sign recognition + auxiliary sign
- Driver attention alert
- Rear cross traffic alert
- Adaptative cruise control with vehicle stop and start
- Intelligence speed adaptation
- Speed limiter
- Lane positionning assist
- Lane change assist - Intelligent speed adaptation 'Blind spot alert'
- Lane keep assist
- Lane positioning assist
- Lane change assist with side blind spot alert
- Autonomous emergency braking system
- Extended traffic sign recognition
- Speed limiter
- Driver attention warning
- Adaptive cruise control with vehicle stop/start
- Intelligent speed adaption
- Rear cross traffic alert
Electric car equipment
Electric car equipment - 11kW On-board Charger (Code: DLZ06)
- 11kW On-Board Charger
- 100kW DC charging
- Type 3 charging cable (AC)
Heat pump (Code: D2501)
- Compared to a traditional heater, a heat pump is around three times more efficient. Electric car range drops in cold conditions, but range tests show that mileage drops around 10% less in the cold on cars fitted with a heat pump compared to those running a fan heater.
Petrol Engine
Petrol 130 PS (96 kW) Automatic
| Cylinders | 3 |
| kW | 96 (130 PS) |
| Gearbox | 8 speed automatic transmission |
| WLTP combined consumption (l/100km)* | 6.0 |
| WLTP mixed C02 emissions (g/km)* | 135 |
| Emission compliance | Euro 6.4 |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Hybrid Motor
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | 6 speed automatic eDCT |
| WLTP combined consumption (l/100km)* | 4,9-5,1 |
| WLTP mixed C02 emissions (g/km) * | 109-115 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 130 |
| Max torque (Nm) | 230 |
| Fuel tank volume (l) | 52 |
Plug-in Hybrid Motor
Plug-In Hybrid 195 PS (144kW) Automatic
| Cylinders | 4 |
| kW | 144 (196 PS) |
| Gearbox | 7 speed automatic |
| WLTP combined consumtion (l/100km)* | 2,4-2,2 |
| WLTP combined consumtion (kWh/100km)* | 12,9-12,7 |
| WLTP combined fuel consumtion with discharged batterie (l/100km)* | 5,5-5,4 |
| WLTP mixed CO2 emissions (g/km)* | 54-50 |
| Emission compliance | Euro 6e-bis |
| Max speed (mph) | 140 |
| Max torque (Nm) | 360 |
| Fuel tank volume (l) | 42 |
Electric Motor
Electric 156 PS (115kW) Automatic
| WLTP combined consumption (kWh/100km)* | 15,4-15,8 |
| WLTP mixed C02 emissions (g/km) * | 0 |
| DC for fast charging (kW) | max. 100 kW, 20-80% - 32 minutes |
| AC charging (kW) | max. 11 kW |
| Max speed (mph) | 105 |
| Max torque (Nm) | 270 |
Technical Data
| Height (mm) | 1441-1488 |
| Width (mm) | 2062, (Non-folded mirrors) |
| Length (mm) | 4374 |
| Wheelbase (mm) | 2675 |
| Vehicle weight incl. Driver (kg) | Petrol AT: 1371, Hybrid: 1454, Plug-In Hybrid: 1678, Electric: 1736 |
| Gross vehicle weight (kg) | Petrol AT: 1880, Hybrid: 1950, Plug-In Hybrid: 2150, Electric: 2100 |
| Maximum braked towing capacity (kg) | Petrol AT: 1250, Hybrid: 1150, Plug-in Hybrid: 1450, Electric: 0 |
Footnotes
- *The consumption, electric range, and CO₂ values are indicative and vary depending on the trim level and added packages.
- ¹The On-The-Road (OTR) Recommended Retail Price (RRP) displayed includes the applicable government electric vehicle grant, where eligible.
