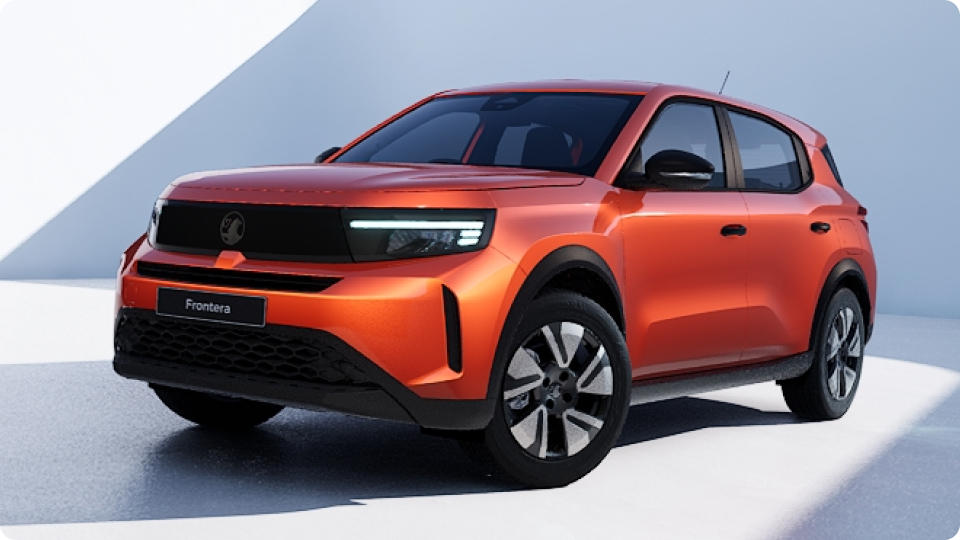

Vauxhall Frontera – Datasheet
Source: https://data-ipl-live.opelhub.com/lang/uk-en/featureDataFrontera.json. All texts and values have been reproduced unchanged from the source.
Trim levels
- Design
- GS
- Ultimate
Powertrains & Prices
| Engine | Design | GS | Ultimate |
|---|---|---|---|
| Petrol 100 PS (74 kW) Manual | £22,820 | £25,220 | £26,020 |
| Hybrid 145 PS (107 kW) Automatic | £26,730 | £29,130 | £29,930 |
| Electric 44kWh 113PS (83kW) Automatic | £23,295 | £25,695 | £26,495 |
| Electric 54kWh Extended Range 113PS (83kW) Automatic | £26,795 | £29,195 | £29,995 |
Additional information per engine
- Petrol:
- Hybrid:
- Electric: 186 miles WLTP Range · Battery capacity 44kWh · Max DC capacity 100kW · On-board Charger (OBC) 11KW triphase standard
- Electric: 254 miles WLTP Range · Battery capacity 52kWh · Max DC capacity 100kW · On-board Charger (OBC) 11KW triphase standard
Technical details
Petrol Engine
- Cylinders: 3
- kW: 74 (100 PS)
- Gearbox: 6-Speed (Manual)
- WLTP Combined Fuel Consumption MPG (l/100km)*: 47.1 (6.0)
- WLTP Combined CO2 emissions (g/km)*: 135
- Emission compliance : Euro 6e-bis
- Maximum speed (mph): 109
- Maximum torque Nm (lb/ft): 205 (151)
- Fuel tank volume (l): 44
Hybrid Engine
- Cylinders: 3
- kW: 107 (145 PS)
- Gearbox: eDCT 6 (Dual clutch automatic)
- WLTP Combined Fuel Consumption MPG (l/100km)*: 53.3 (5.3)
- WLTP Combined CO2 emissions (g/km)*: 119
- Emission compliance : Euro 6e-bis
- Maximum speed (mph): 120
- Maximum torque Nm (lb/ft): 230 (170)
- Fuel tank volume (l): 44
- Emission compliance : Euro 6e-bis
Electric Engine
- WLTP combined consumption (kWh/100km)*: 18.1
- WLTP mixed C02 emissions (g/km) *: 0
- Electric Range WLTP (miles): Up to 190
- Battery Capacity (kW): 44.2 (Total) 43.7 (Useable)
- DC Charging Speed (kW): Max 100, 20-80% - 26 minutes, +62 m - 10 minutes
- AC Charging Speed (kW): Max 11
- Maximum speed (mph): 89
- Maximum torque Nm (lb/ft): 124.5 (92)
- WLTP mixed C02 emissions (g/km)*: 0
- Maximum speed (mp/h): 89
Technical Data
- Height (mm): 1635-1655
- Width excluding wing mirros (mm): 1795
- Length (mm): 4385
- Wheelbase (mm): 2670
Weights / towing weight (kg)
| Vehicle weight |
| Maximum braked towing capacity |
All details: Design trim level
Key features
- 10" colour touchscreen with wireless Apple CarPlay™ / Android Auto™
Powertrains & Prices
Petrol 100 PS (74 kW) Manual – £22,820
Hybrid 145 PS (107 kW) Automatic – £26,730
Electric 44kWh 113PS (83kW) Automatic – £23,295¹ (On-the road RRP After ECG)
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 186 miles WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Electric 54kWh Extended Range 113PS (83kW) Automatic – £26,795¹ (On-the road RRP After ECG)
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 254 miles WLTP Range
- Battery capacity 52kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Design
- Carbon Black (Metallic Paint) – £0
- Canyon Orange (Metallic Paint) – +£650
- Arctic White (Solid Paint) – +£650
- Crystal Silver (Metallic Paint) – +£650
- Effect Blue (Metallic Paint) – +£650
- Khaki Green (Metallic Paint) – +£650
- Khaki Green on Design Electric Extended Range only available with white roof.
Body colour roof
- All Design models come with a body colour roof (exl Khaki Green) as standard. White roof is available as a cost option.
Silver Vauxhall logo and lettering
Vauxhall Signature Vizor
Stunning 17” Diamond Cut alloy wheels
Black skid plates front & rear
Grained door handles
Black painted exterior door mirrors
Comfort & Infotainment
Standard seats comfort
Automatic air conditioning & rain-sensitive front windscreen wipers
- with rear windscreen wipers with combi switch for control, intermittent rear windscreen wipers and rear window defrost function.
- with rear windscreen wipers with combi switch for control, intermittent rear windscreen wipers and rear window defrost function.
Infotainment
- Wireless CarPlay™ / Android Auto™
- Bluetooth® for hands-free phone calls and audio streaming
- AM/FM/DAB digital radio
- 6 speakers (2 front woofers, 2 rear full range speakers, 2 tweeters)
- 10” driver information display
- 1 USB-C charging ports for front passengers
- 1 USB-C charging ports for rear passengers
- 1 USB-C charging port for third row (Hybrid with 7-seat pack)
Luggage compartment
- 460 - 1600 L of cargo space with 4 anchoring rings
- 40:60 rear seat split
- Tailgate liner with handle
- Parcel tray
- Boot carpet
- Side storage
Front Storage
- Glove box
- Centre console armrest with integrated closed storage
- 2 centre console cup holders
- Centre console phone /tablet stowage strap
- 1 litre bottle front door storage
- 1 litre bottle rear door storage
Rear-view mirror
Standard electric power steering wheel with tilt & telescope
Front & rear power windows with driver override
Optional features

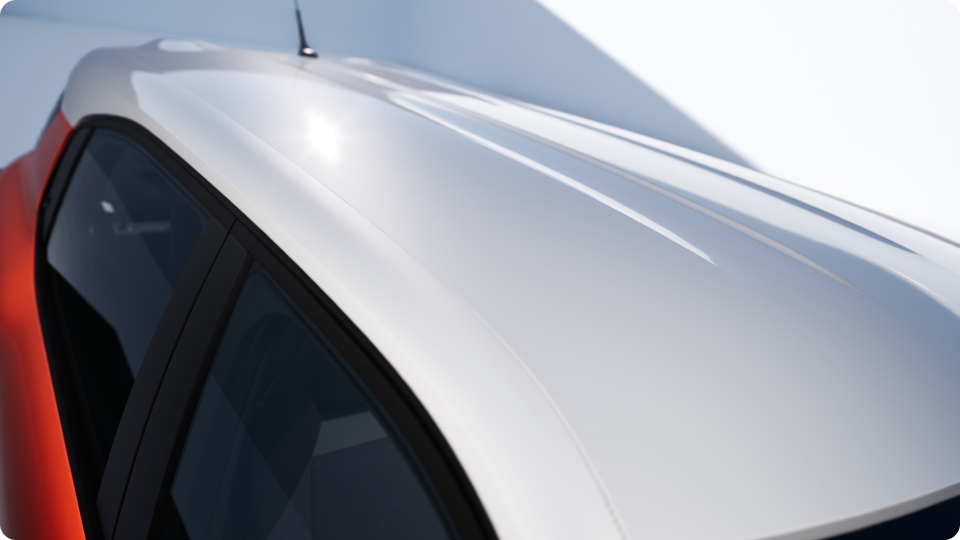

White roof – +£100 (Code: DJD05)
- Standard with Khaki Green paint on Frontera Design 54kWh Extended Range (automatically added to the price)
- Not available with Arctic White or Crystal Silver
Spare wheel provision – +£20 (Code: DRS19)
Safety & Security & Driving Aids
Lights
- Intelli-LED Headlights with Automatic High Beam
- Standard tail lights
- Rear fog lamp
- Standard wing mirrors with bulb lights
Folding wing mirrors (manual)
Rear parking sensors
Driver aids & tech
- Lane Keep Assist
- Reversing camera & sensors
- Risk of collision warning
- Active safety braking
- Speed sign display
- Cruise control with speed limiter
- Driver attention warning
Passenger safety
- Driver & front passenger airbags with active seat sensor for driver
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts with pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Electronic parking brake
- Tyre Pressure Warning System with dashboard reset button
Vehicle security
- Access & start (key)
- Remote central locking
- Automatic locking after inactivity or distance from vehicle
- Automatic door locking while driving
- Child safety locks
- Engine immobiliser
Electric car equipment
- 11kW On Board Charger
- Type 2 charging cable (AC)
- (DC cables are provided by the charging station)
- No cables required for Hybrid
Petrol Engine
Petrol 100 PS (74 kW) Manual
| Cylinders | 3 |
| kW | 74 (100 PS) |
| Gearbox | 6-Speed (Manual) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 47.1 (6.0) |
| WLTP Combined CO2 emissions (g/km)* | 135 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 109 |
| Maximum torque Nm (lb/ft) | 205 (151) |
| Fuel tank volume (l) | 44 |
Hybrid Engine
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | eDCT 6 (Dual clutch automatic) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 53.3 (5.3) |
| WLTP Combined CO2 emissions (g/km)* | 119 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 120 |
| Maximum torque Nm (lb/ft) | 230 (170) |
| Fuel tank volume (l) | 44 |
Electric Engine
Electric 44kWh 113PS (83kW) Automatic
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 18.1 |
| WLTP mixed C02 emissions (g/km) * | 0 |
| Electric Range WLTP (miles) | Up to 190 |
| Battery Capacity (kW) | 44.2 (Total) 43.7 (Useable) |
| DC Charging Speed (kW) | Max 100, 20-80% - 26 minutes, +62 m - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mph) | 89 |
| Maximum torque Nm (lb/ft) | 124.5 (92) |
Electric 54kWh Extended Range 113PS (83kW) Automatic
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 16,1 |
| WLTP mixed C02 emissions (g/km)* | 0 |
| Electric Range WLTP (miles) | Up to 248 |
| Battery Capacity (kW) | 54 (Total) 52.8 (Useable) |
| DC Charging Speed (kW) | Max 100, 20 - 80% - 28 minutes, +100km - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mp/h) | 89 |
| Maximum torque Nm (lb/ft) | 124,5 (92) |
Technical Data
| Height (mm) | 1635-1655 |
| Width excluding wing mirros (mm) | 1795 |
| Length (mm) | 4385 |
| Wheelbase (mm) | 2670 |
| Vehicle weight (kg) | 1830 |
| Maximum braked towing capacity (kg) | 350-1500 |
| Tyre sizes | 17" Diamond Cut alloy wheels (215/60 R17) |
| Boot volume (litres) | 460 |
| Boot volume with rear seats folded (litres) | 1600 |
All details: GS trim level
Key features
- Keyless entry & start
- In-built navigation system
- 10” touchscreen with wireless Apple CarPlay™ / Android Auto™
Powertrains & Prices
Petrol 100 PS (74 kW) Manual – £25,220
Hybrid 145 PS (107 kW) Automatic – £29,130
Electric 44kWh 113PS (83kW) Automatic – £25,695¹ (On-the road RRP After ECG)
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 186 miles WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Electric 54kWh Extended Range 113PS (83kW) Automatic – £29,195¹ (On-the road RRP After ECG)
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 254 miles WLTP Range
- Battery capacity 52kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Design
- Carbon Black (Metallic Paint) – £0
- Canyon Orange (Metallic Paint) – +£650
- Arctic White (Solid Paint) – +£650
- Crystal Silver (Metallic Paint) – +£650
- Effect Blue (Metallic Paint) – +£650
- Khaki Green (Metallic Paint) – +£650
Black roof
- All GS models come with a black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
Black Vauxhall logo and lettering
Vauxhall Signature Vizor
Stunning 17" Diamond Cut alloy wheels
Silver-painted skid plate front & rear
Privacy glass
Black painted exterior door mirrors
Comfort & Infotainment

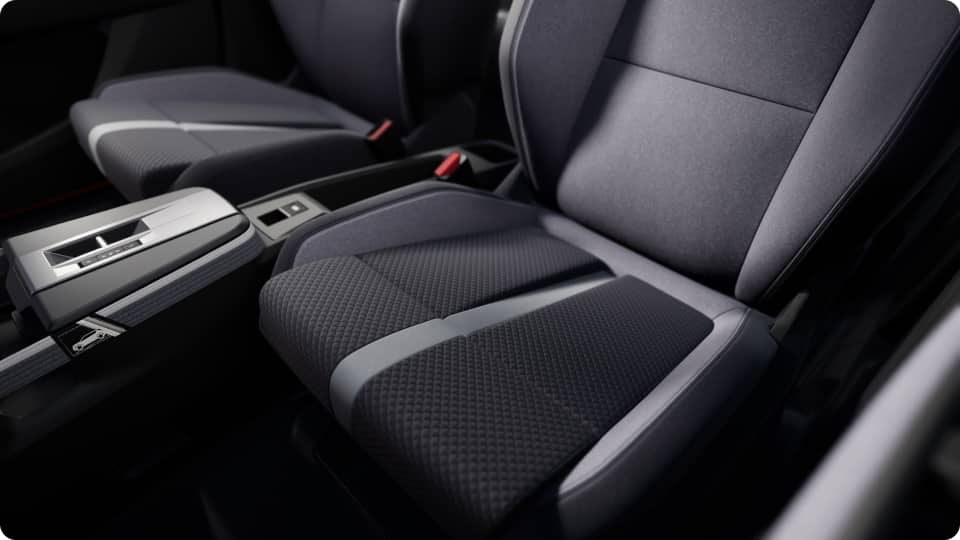

Driver & front passenger Intelli-Seats
- Ergo features include lumbar support to reduce fatigue. Wide use of recycled materials
Automatic air conditioning & rain-sensitive front windscreen wipers
- with rear windscreen wipers with combi switch for control, intermittent rear windscreen wipers and defrost rear window function.
Infotainment
- Integrated navigation system
- Wireless CarPlay™ / Android Auto™
- Bluetooth® for hands-free phone calls and audio streaming
- AM/FM/DAB digital radio
- 6 speakers (2 front woofers, 2 rear full range speakers, 2 tweeters)
- 10” driver information display
- Wireless mobile phone charger
- 1 USB-C charging ports for front passengers
- 1 USB-C charging ports for rear passengers
- 1 USB-C charging port for third row (Hybrid with 7-seat pack) ´´
Luggage compartment
- 460 - 1600 L of cargo space with 4 anchoring rings
- Sub-Boot load floor
- 40:60 rear seat split
- Tailgate liner with handle
- Parcel tray
- Boot carpet
- Side storage
Storage
- Glove box
- Centre console armrest with integrated closed storage
- 2 centre console cup holders
- Centre console phone /tablet stowage strap
- 1 litre bottle front door storage
- 1 litre bottle rear door storage
- 2 x smartphone pockets for rear passengers
- 2 x larger storage pockets for rear passengers (e.g. tablet)
Electrochromic rear-view mirror
Leather-effect steering wheel
- eco leather (TEP)
- with radio
- cruise/limiter
- no heating
Front & rear power windows with driver override
Wireless charger fast charging
Keyless entry & start
- Keyless entry activated through sensor on driver door handle
Optional features
7-Seat Pack (hybrid only) – +£550 (Code: DAN10)
- Third row with 2 additional seats (Second seat row tumbles for access)
- 1 Additional USB-C charging port
Spare wheel provision – +£20 (Code: DRS19)
Safety & Security & Driving Aids
Lights
- Intelli-LED Headlights with Automatic High Beam
- LED tail lights
- Rear fog lamp
- LED wing mirror lights
Power-folding wing mirrors with de-fog function
Rear view camera with blind spot alert
- and front and rear parking sensors
Driver aids & tech
- Lane Keep Assist
- Reversing camera & sensors
- Risk of collision warning
- Active safety braking
- Speed sign display
- Cruise control with speed limiter
- Driver attention warning
- Blind spot detection
Passenger safety
- Driver & front passenger airbags with active seat sensor for driver)
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts with pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Electronic parking brake
- Tyre Pressure Warning System with dashboard reset button
Vehicle security
- Keyless entry & start - Keyless entry activated through sensor on driver door handle
- Remote central locking
- Automatic locking after inactivity or distance from vehicle
- Automatic door locking while driving
- Child safety locks
- Engine immobiliser
Electric car equipment
- 11kW On Board Charger
- Type 2 charging cable (AC)
- (DC cables are provided by the charging station)
- No cables required for Hybrid
Petrol Engine
Petrol 100 PS (74 kW) Manual
| Cylinders | 3 |
| kW | 74 (100 PS) |
| Gearbox | 6-Speed (Manual) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 47.1 (6.0) |
| WLTP Combined CO2 emissions (g/km)* | 135 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 109 |
| Maximum torque Nm (lb/ft) | 205 (151) |
| Fuel tank volume (l) | 44 |
Hybrid Engine
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | eDCT 6 (Dual clutch automatic) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 53.3 (5.3) |
| WLTP Combined CO2 emissions (g/km)* | 119 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 120 |
| Maximum torque Nm (lb/ft) | 230 (170) |
| Fuel tank volume (l) | 44 |
Electric Engine
Electric 44kWh 113PS (83kW) Automatic
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 18.2 |
| WLTP mixed C02 emissions (g/km)* | 0 |
| Electric Range WLTP (miles) | Up to 190 |
| Battery Capacity (kW) | 44.2 (Total) 43.7 (Useable) |
| DC Charging Speed (kW) | Max 100, 20-80% - 26 minutes, +62m - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mph) | 89 |
| Maximum torque Nm (lb/ft) | 124.5 (92) |
Electric 54kWh Extended Range 113PS (83kW) Automatic
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 16,1 |
| WLTP mixed C02 emissions (g/km)* | 0 |
| Electric Range WLTP (miles) | Up to 247 |
| Battery Capacity (kW) | 54 (Total) 52.8 (Useable) |
| DC Charging Speed (kW) | Max 100, 20 - 80% - 28 minutes, +100km - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mph) | 89 |
| Maximum torque Nm (lb/ft) | 124,5 (92) |
Technical Data
| Height (mm) | 1635-1655 |
| Width excluding wing mirros (mm) | 1795 |
| Length (mm) | 4385 |
| Wheelbase (mm) | 2670 |
| Vehicle weight (kg) | 1830-2020 |
| Maximum braked towing capacity (kg) | 350-1500 |
| Tyre sizes | 17" Diamond Cut alloy wheels , (215/60 R17) |
| Boot volume (litres) | 460 |
| Boot volume with rear seats folded (litres) | 1600 |
All details: Ultimate trim level
Key features
- Heated front seats
- Keyless entry & start
- In-built navigation system
- 10” touchscreen with wireless Apple CarPlay™ / Android Auto™
- Roof rails
Powertrains & Prices
Petrol 100 PS (74 kW) Manual – £26,020
Hybrid 145 PS (107 kW) Automatic – £29,930
Electric 44kWh 113PS (83kW) Automatic – £26,495¹ (On-the road RRP After ECG)
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 186 miles WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Electric 54kWh Extended Range 113PS (83kW) Automatic – £29,995¹ (On-the road RRP After ECG)
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
- 254 miles WLTP Range
- Battery capacity 52kWh
- Max DC capacity 100kW
- On-board Charger (OBC) 11KW triphase standard
Design
- Carbon Black (Metallic Paint) – £0
- Canyon Orange (Metallic Paint) – +£650
- Arctic White (Solid Paint) – +£650
- Crystal Silver (Metallic Paint) – +£650
- Effect Blue (Metallic Paint) – +£650
- Khaki Green (Metallic Paint) – +£650
Black roof
- All Ultimate models come with a black contrast roof (exl Carbon Black) as standard. Body coloured roof is available as an option.
Black Vauxhall logo and lettering
Vauxhall Signature Vizor
Stunning 17" Diamond Cut alloy wheels
Silver-painted skid plate front & rear
Privacy glass
Roof rails
Black painted exterior door mirrors
Comfort & Infotainment
Heated driver & front passenger Intelli-Seats
- Ergo features include lumbar support to reduce fatigue. Wide use of recycled materials
Automatic air conditioning, rain-sensitive front windscreen wipers & heated windscreen
- With rear windscreen wipers with combi switch for control, intermittent rear windscreen wipers and defrost rear window function.
Infotainment
- Integrated navigation system
- Wireless CarPlay™ / Android Auto™
- Bluetooth® for hands-free phone calls and audio streaming
- AM/FM/DAB digital radio
- 6 speakers (2 front woofers, 2 rear full range speakers, 2 tweeters)
- 10” driver information display
- Wireless mobile phone charger
- 1 USB-C charging ports for front passengers
- 1 USB-C charging ports for rear passengers
- 1 USB-C charging port for third row (Hybrid with 7-seat pack)
Luggage compartment
- 460 - 1600 L of cargo space with 4 anchoring rings
- Sub-Boot load floor
- 40:60 rear seat split
- Tailgate liner with handle
- Parcel tray
- Boot carpet
- Side storage
Storage
- Glove box
- Centre console armrest with integrated closed storage
- 2 centre console cup holders
- Centre console phone /tablet stowage strap
- 1 litre bottle front door storage
- 1 litre bottle rear door storage
- 2 x smartphone pockets for rear passengers
- 2 x larger storage pockets for rear passengers (e.g. tablet)
Electrochromic rear-view mirror
Leather-effect steering wheel
- eco leather (TEP)
- with radio
- cruise/limiter
- Heating
Front & rear power windows with driver override
Wireless charger fast charging
Keyless entry & start
- Keyless entry activated through sensor on driver door handle
Optional features
7-Seat Pack (hybrid only) – +£550 (Code: DAN10)
- Third row with 2 additional seats (Second seat row tumbles for access)
- 1 Additional USB-C charging port
Spare wheel provision – +£20 (Code: DRS19)
Safety & Security & Driving Aids
Lights
- Intelli-LED Headlights with Automatic High Beam
- LED tail lights
- Front & rear LED fog lamps
- LED wing mirror lights
Power-folding wing mirrors with de-fog function
Rear view camera with blind spot alert
- and front and rear parking sensors
Driver aids & tech
- Lane Keep Assist
- Reversing camera & sensors
- Risk of collision warning
- Active safety braking
- Speed sign display
- Cruise control with speed limiter
- Driver attention warning
- Blind spot detection
Passenger safety
- Driver & front passenger airbags with active seat sensor for driver)
- Side & curtain airbags for front and second row passengers
- Deactivation switch for front passenger and side impact bags
- Driver & front passenger seatbelts with pyrotechnic pretensioners & load limiters
- Second row: 3-point seatbelts with pretensioners & load limiters (outer)
- Isofix child seat mountings with top tether (second row, outer)
- Hill start assist
- ABS (Anti-lock braking)
- EBD (Electronic Brakeforce Distribution)
- EBA (Emergency Brake Assist)
- High deceleration warning light
- ESP & TCS with deactivation switch on dashboard
- Electronic parking brake
- Tyre Pressure Warning System with dashboard reset button
Vehicle security
- Keyless entry & start - Keyless entry activated through sensor on driver door handle
- Remote central locking
- Automatic locking after inactivity or distance from vehicle
- Automatic door locking while driving
- Child safety locks
- Engine immobiliser
Electric car equipment
- 11kW On Board Charger
- Type 2 charging cable (AC)
- (DC cables are provided by the charging station)
- No cables required for Hybrid
Petrol Engine
Petrol 100 PS (74 kW) Manual
| Cylinders | 3 |
| kW | 74 (100 PS) |
| Gearbox | 6-Speed (Manual) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 47.1 (6.0) |
| WLTP Combined CO2 emissions (g/km)* | 135 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 109 |
| Maximum torque Nm (lb/ft) | 205 (151) |
| Fuel tank volume (l) | 44 |
Hybrid Engine
Hybrid 145 PS (107 kW) Automatic
| Cylinders | 3 |
| kW | 107 (145 PS) |
| Gearbox | eDCT 6 (Dual clutch automatic) |
| WLTP Combined Fuel Consumption MPG (l/100km)* | 53.3 (5.3) |
| WLTP Combined CO2 emissions (g/km)* | 120 |
| Emission compliance | Euro 6e-bis |
| Maximum speed (mph) | 120 |
| Maximum torque Nm (lb/ft) | 230 (170) |
| Fuel tank volume (l) | 44 |
Electric Engine
Electric 44kWh 113PS (83kW) Automatic
- 305km WLTP Range
- Battery capacity 44kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 18.2 |
| WLTP mixed C02 emissions (g/km)* | 0 |
| Electric Range WLTP (miles) | Up to 190 |
| Battery Capacity (kW) | 44.2 (Total) 43.7 (Useable) |
| DC Charging Speed (kW) | Max 100, 20-80% - 26 minutes, +62m - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mph) | 89 |
| Maximum torque Nm (lb/ft) | 124.5 (92) |
Electric 54kWh Extended Range 113PS (83kW) Automatic
- 405km WLTP Range
- Battery capacity 54kWh
- Max DC capacity 100kW
- On Board Charger (OBC) 7.4kW single-phase standard
| WLTP combined consumption (kWh/100km)* | 16,1 |
| WLTP mixed C02 emissions (g/km)* | 0 |
| Electric Range WLTP (miles) | Up to 247 |
| Battery Capacity (kW) | 54 (Total) 52.8 (Useable) |
| DC Charging Speed (kW) | Max 100, 20 - 80% - 28 minutes, +100km - 10 minutes |
| AC Charging Speed (kW) | Max 11 |
| Maximum speed (mph) | 89 |
| Maximum torque Nm (lb/ft) | 124,5 (92) |
Technical Data
| Height (mm) | 1635-1655 |
| Width excluding wing mirros (mm) | 1795 |
| Length (mm) | 4385 |
| Wheelbase (mm) | 2670 |
| Vehicle weight (kg) | 1830-2020 |
| Maximum braked towing capacity (kg) | 350-1500 |
| Tyre sizes | 17" Diamond Cut alloy wheels , (215/60 R17) |
| Boot volume (litres) | 460 |
| Boot volume with rear seats folded (litres) | 1600 |
Footnotes
- *The consumption, electric range, and CO₂ values are indicative and vary depending on the trim level and added packages.
- ¹The On-The-Road (OTR) Recommended Retail Price (RRP) displayed includes the applicable government electric vehicle grant, where eligible
